RS-232-styrning och ASCII-kommandogränssnitt
AC7110 inkluderar en RS 232-kommunikationsport för fjärrstyrning med hjälp av ASCII-kommandon.

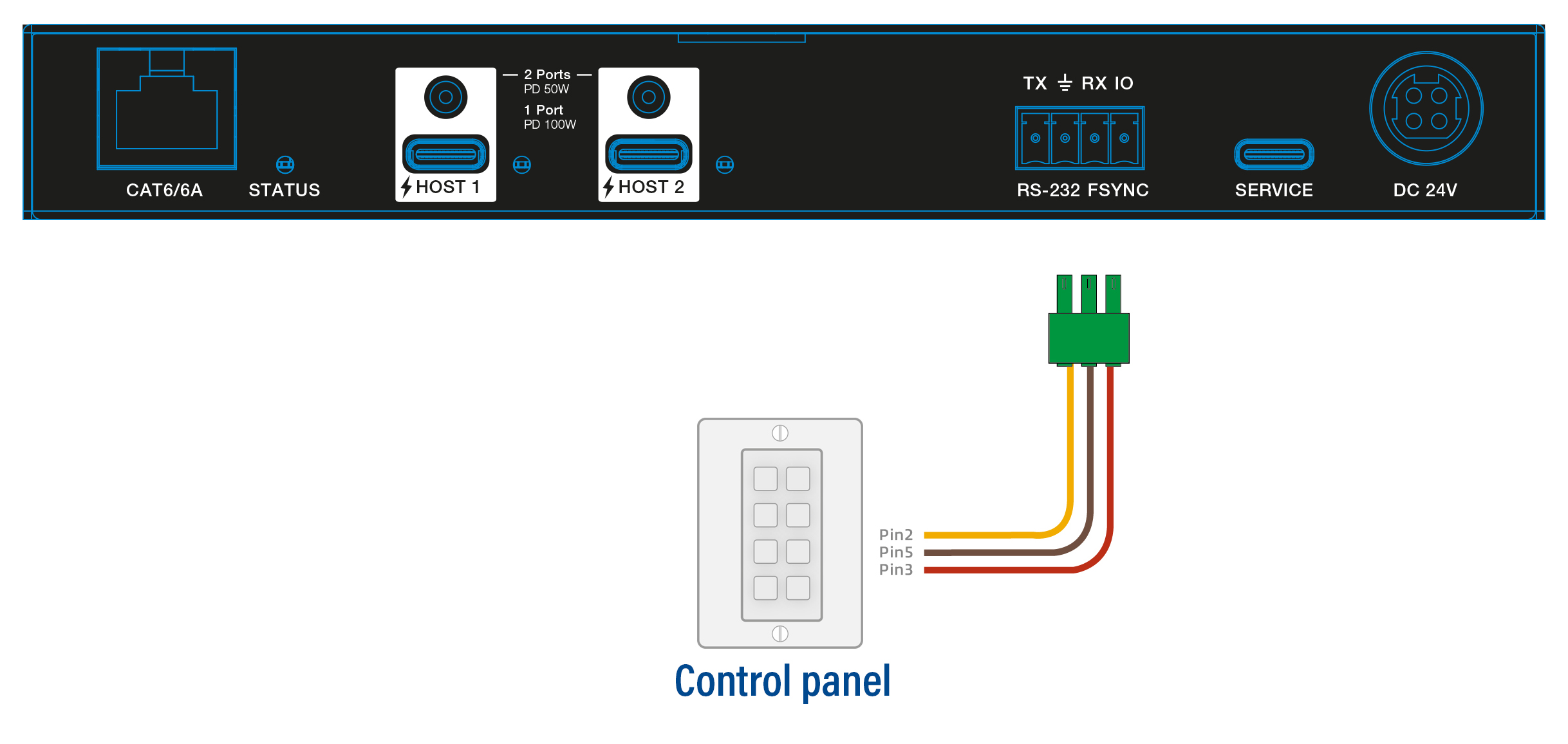

Dessa kommandon kan skickas på olika sätt, vanligast via en kontrollpanel.

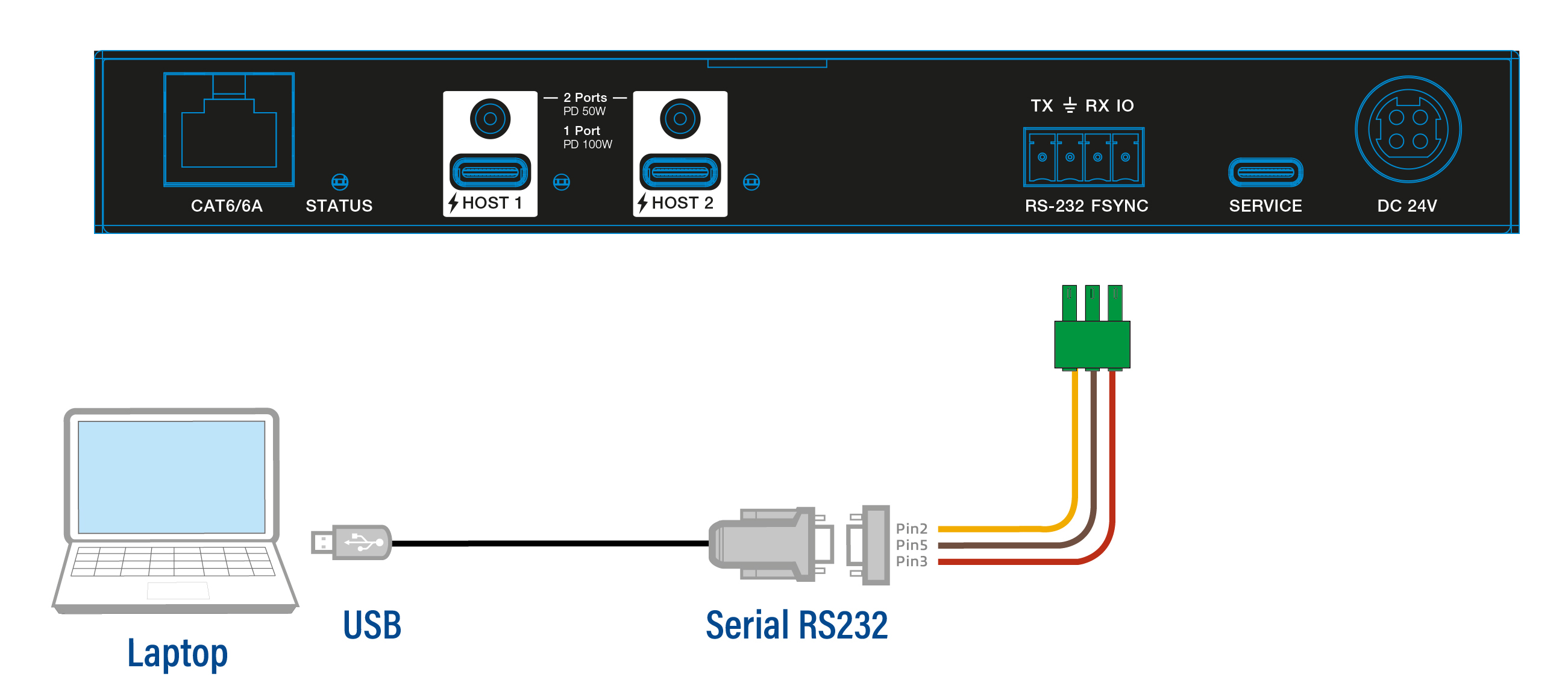

För teständamål kan AC7110 också kopplas direkt till en PC för att verifiera API-kommandofunktionalitet.
- Serviceport (USB-C virtuell RS-232) kommunikationsprotokoll (intern felsökning) Baud rate: 115200 (fast), Data bit: 8, Stop bit: 1, Parity bit: ingen
- Phoenix RS-232-port kommunikationsprotokoll (anslut till styrsystem) Baud rate: 4800~115200 (konfigurerbar), Data bit: 8, Stop bit: 1, Parity bit: ingen
| Command | Function | Example | Feedback | Default |
| ? | Get the list of all commands | ? | ||
| help | Get the list of all commands | help | ||
| get fw version | Get firmware version | get fw version | TX FW 1.0.0 / RX FW 1.0.0 | |
| set reboot | Reboot the device | set reboot | Reboot – system initializing | |
| set reset | Reset to factory defaults | set reset | Confirm reset | |
| get status | Get system status | get status | System status output | |
| set key on/off | Enable or disable front panel key | set key off | Key off | on |
| get key | Get front panel key status | get key | Key on | |
| set baud x | Set RS-232 baud rate | set baud 6 | Baud rate 115200 | 115200 |
| get baud | Get RS-232 baud rate | get baud | Baud rate 115200 | |
| get usb5v x | Get USB host input 5V status | get usb5v 0 | USB host 1: 5V / USB host 2: none | |
| set autoswitch x | Set auto-switching on/off | set autoswitch on | Autoswitch on | on |
| get autoswitch | Get auto-switching status | get autoswitch | Autoswitch on | |
| set tx usbd x power y | Set TX USB device port power | set tx usbd 0 power 1 | TX USB power follows host | 1 |
| get tx usbd x power | Get TX USB device power | get tx usbd 0 power | TX USB power follows host | |
| set rx usbd x power y | Set RX USB device port power | set rx usbd 0 power 1 | RX USB power follows host | 1 |
| get rx usbd x power | Get RX USB device power | get rx usbd 0 power | RX USB power follows host | |
| set hdbt update | Set service port to HDBT UART | set hdbt update | HDBT update | |
| set input x | Select USB host input | set input 1 | Input USB host 1 | 1 |
| get input | Get USB host input | get input | Input USB host 1 |
