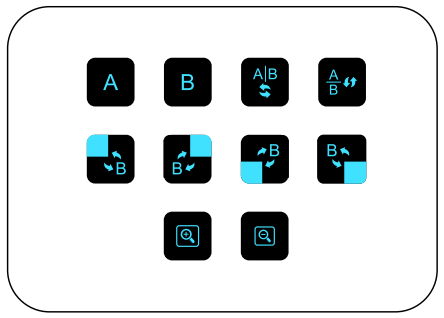

Knapp Beskrivelse
- Når
eller
key is pressed, the AC7610 will switch the loop-out and capture output to input HDMI IN (A) or HDMI IN (B).
- Når
key is pressed, both HDMI IN (A) and HDMI IN (B) will be displayed side by side on the loop-out and capture output. When the key is pressed again HDMI in (A) and HDMI in (B) will switch position.
- Når
key is pressed, HDMI IN (A) and HDMI IN (B) will be displayed together divided in equal upper and lower proportion on the loop-out and capture output. When the key is pressed again, HDMI IN (A) and HDMI IN (B) will switch position.
- Disse fire
keys, are all picture-in-picture display area location, and can be pressed again under the current key, A/B screen to complete the interchange.
