Interfaccia di Controllo RS-232 e Comandi ASCII
L'AC7110 include una porta di comunicazione RS 232 per il controllo remoto tramite comandi ASCII.

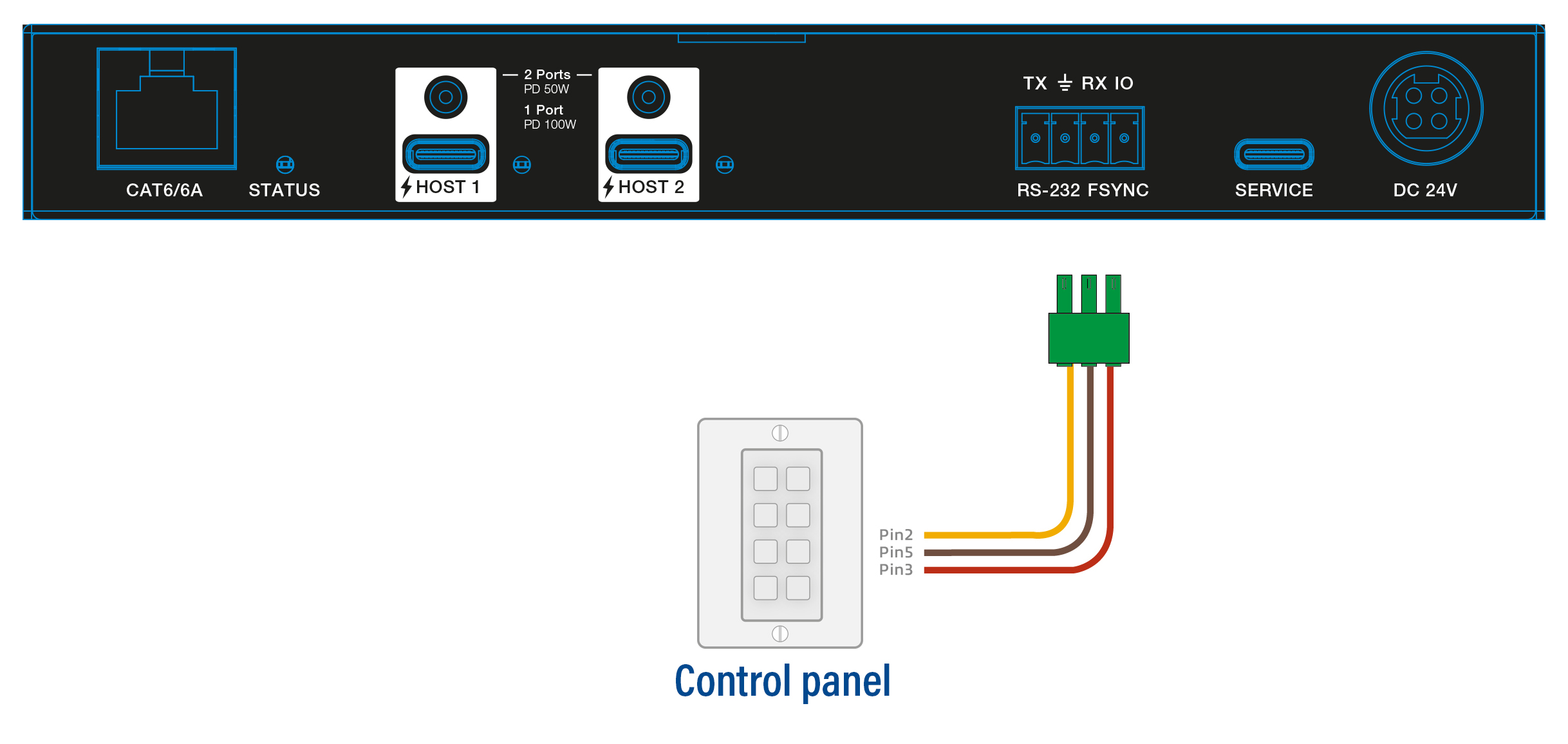

Questi comandi possono essere inviati in diversi modi, il più comune tramite un pannello di controllo.

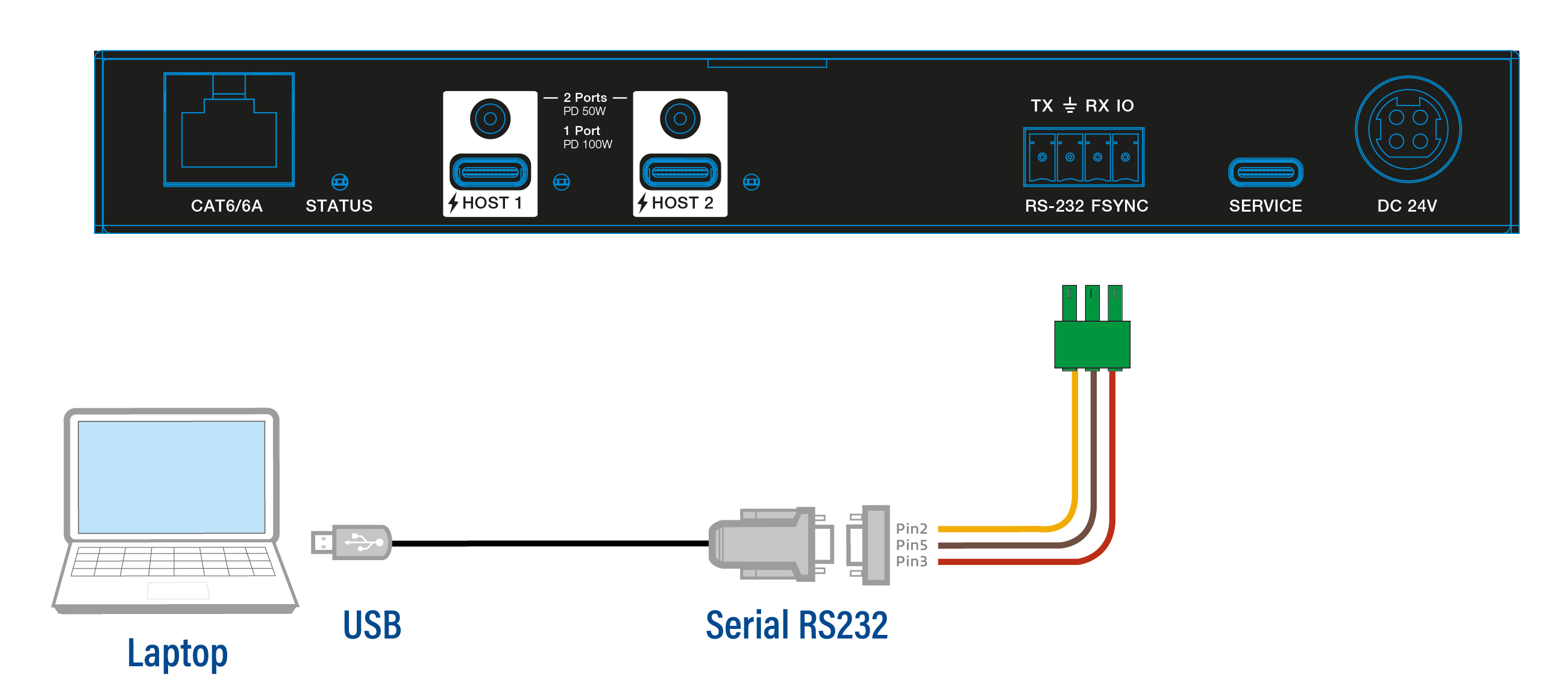

Per scopi di test, l'AC7110 può anche essere collegato direttamente a un PC per verificare la funzionalità dei comandi API.
- Protocollo di comunicazione porta di servizio (USB-C virtuale RS-232) (debug interno) Velocità di trasmissione: 115200 (fissa), Bit dati: 8, Bit di stop: 1, Bit di parità: nessuno
- Protocollo di comunicazione porta RS-232 Phoenix (Collegamento al sistema di controllo) Velocità di trasmissione: 4800~115200 (configurabile), Bit dati: 8, Bit di stop: 1, Bit di parità: nessuno
| Command | Function | Example | Feedback | Default |
| ? | Get the list of all commands | ? | ||
| help | Get the list of all commands | help | ||
| get fw version | Get firmware version | get fw version | TX FW 1.0.0 / RX FW 1.0.0 | |
| set reboot | Reboot the device | set reboot | Reboot – system initializing | |
| set reset | Reset to factory defaults | set reset | Confirm reset | |
| get status | Get system status | get status | System status output | |
| set key on/off | Enable or disable front panel key | set key off | Key off | on |
| get key | Get front panel key status | get key | Key on | |
| set baud x | Set RS-232 baud rate | set baud 6 | Baud rate 115200 | 115200 |
| get baud | Get RS-232 baud rate | get baud | Baud rate 115200 | |
| get usb5v x | Get USB host input 5V status | get usb5v 0 | USB host 1: 5V / USB host 2: none | |
| set autoswitch x | Set auto-switching on/off | set autoswitch on | Autoswitch on | on |
| get autoswitch | Get auto-switching status | get autoswitch | Autoswitch on | |
| set tx usbd x power y | Set TX USB device port power | set tx usbd 0 power 1 | TX USB power follows host | 1 |
| get tx usbd x power | Get TX USB device power | get tx usbd 0 power | TX USB power follows host | |
| set rx usbd x power y | Set RX USB device port power | set rx usbd 0 power 1 | RX USB power follows host | 1 |
| get rx usbd x power | Get RX USB device power | get rx usbd 0 power | RX USB power follows host | |
| set hdbt update | Set service port to HDBT UART | set hdbt update | HDBT update | |
| set input x | Select USB host input | set input 1 | Input USB host 1 | 1 |
| get input | Get USB host input | get input | Input USB host 1 |
