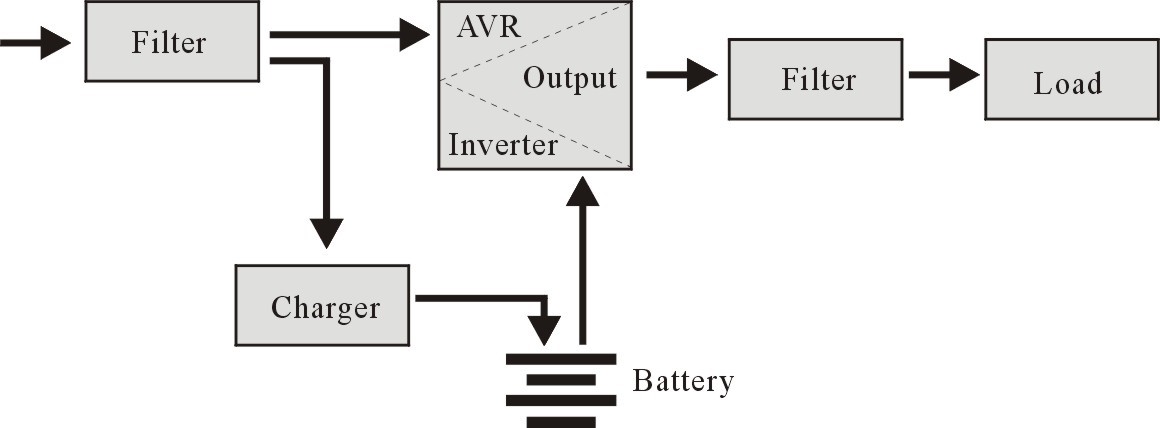

In AC mode
When UPS is in normal working mode, AC goes through the filter and the harmful waves are filtered. After that, AC charges the battery and meanwhile, passes UPS AVR and the filter and provide power for the equipment.

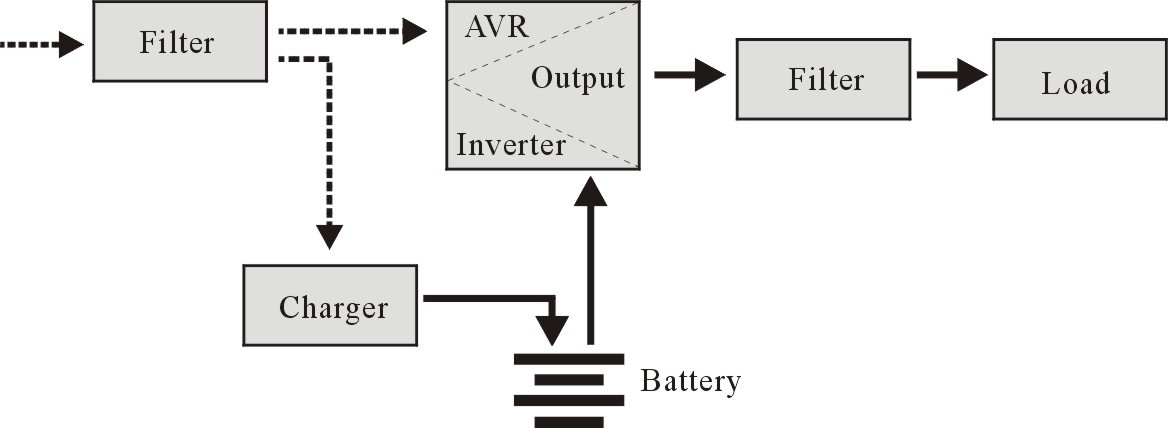

AC Failure
When AC fails, the battery will supply power to the inverter and then passes filter and provide power for the equipment, ensuring the continuous power supply.
UPS outputs
The AC2300 UPS has 6 outputs:
- At the left side three outputs for power failure (surge/spike) protection.
- At the right side three outputs for power failure (surge/spike) protection with a backup function when AC fails. The built-in battery will continue to supply power for the connected equipment.
The AC2305 UPS has 2 outputs 1x IEC (C13) + 1x EU socket type F female:
Both outputs are for power failure (surge/spike) protection with a backup function when AC fails. The built-in battery will continue to supply power for the connected equipment.
Battery and Charging:
- When the UPS is connected to AC, the charger will charge the battery fully in about 10 hours.
- When the battery is used up, please turn off the UPS and charge the battery for a least 10 hours when. Then turn on the UPS
