AC7047 Connect the docking station

  • Updated

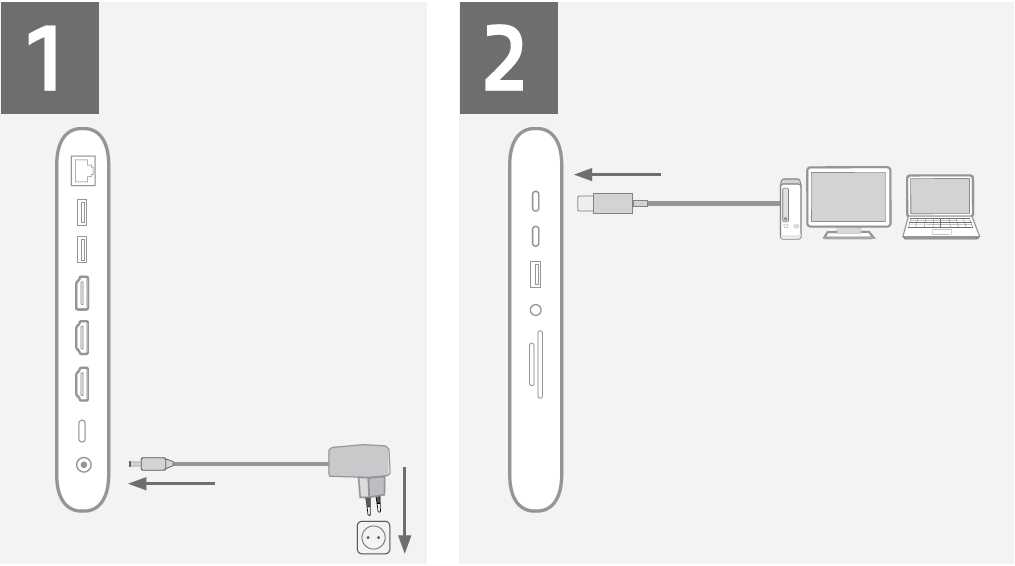

  1. Connect the plug of the power supply to the DC connector of the docking station and then connect the other end of the power supply into the wall outlet.
  2. Connect the supplied USB-C cable to the USB-C host connector on the docking station and the other end to the USB-C connector of your computer.

AC7047_Connect2.png AC7047_Connect3.png

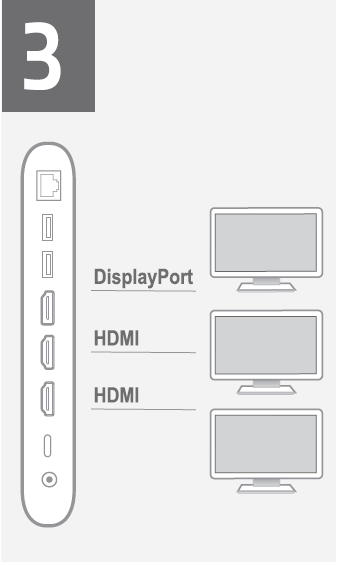

  1. Connect the docking station to your HDMI and DP display(s)

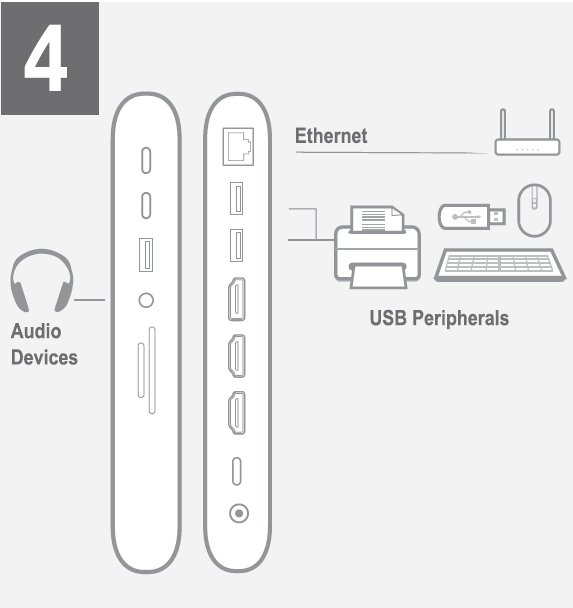

  2. Connect the docking station to:• USB peripherals • Audio devices • Gigabit Ethernet
