AC7046 Connections

Front
 1x USB-C female notebook connection (connect this port to the USB-C connector
of your notebook
 1x USB-C 3.2 Gen1 female (5Gbps)
 1x USB-A 3.2 Gen1 female (5Gbps)
 1x 3.5mm jack headset female (headphone + mic)
 1x SD/micro SD card reader

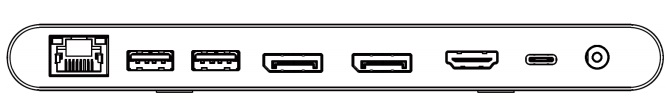

Rear
 1x DC power supply
 1x USB-C female PD Pass-through port (connect your USB-C charger to charge
your notebook)
 1x HDMI 2.0 female port (connect your HDMI monitor) to this HDMI port
 2x DisplayPort female port(connect your DP monitor(s)) to these DP ports
 2x USB-A 3.2gen1 female
 1x Gigabit LAN RJ45 female port


Connect the AC7046

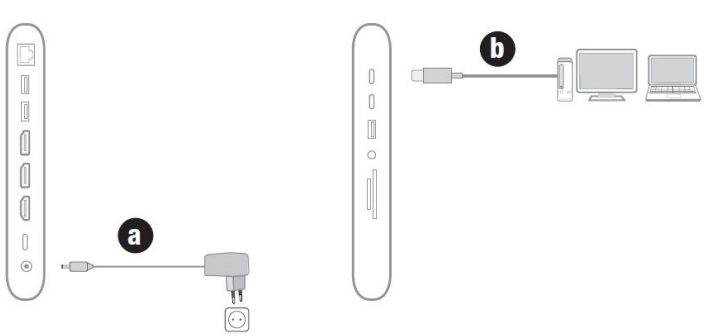

a. Connect the plug of the power supply to the DC connector of the docking station
and then connect the other end of the power supply into the wall outlet.


b. Connect the supplied USB-C cable to the USB-C host connector on the docking
station and the other end to the USB-C connector of your computer.

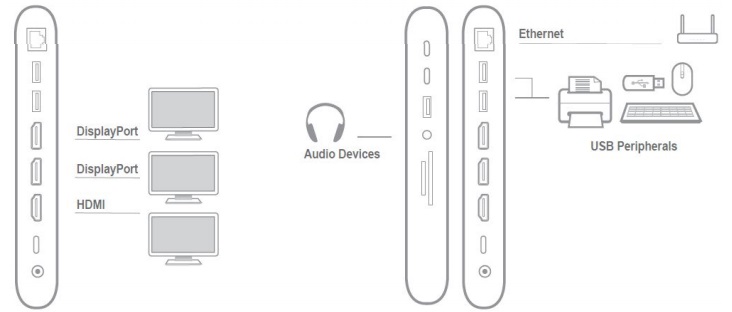

c. Connect the docking station to your HDMI and DP display(s)


d. Connect the docking station to:• USB peripherals • Audio devices • Gigabit
Ethernet
