AC7045 Connections

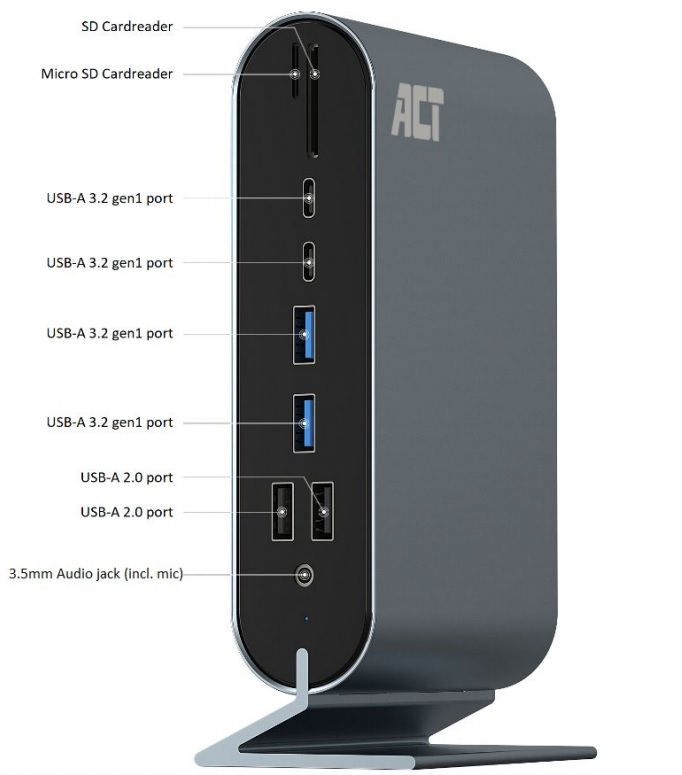

Front
 1x SD/micro SD card reader
 2x USB-C 3.2 Gen1 female (5Gbps)
 2x USB-A 3.2 Gen1 female (5Gbps)
 2x USB-A 2.0 female (for mouse/keyboard)
 1x 3.5mm jack headset female (headphone + mic)

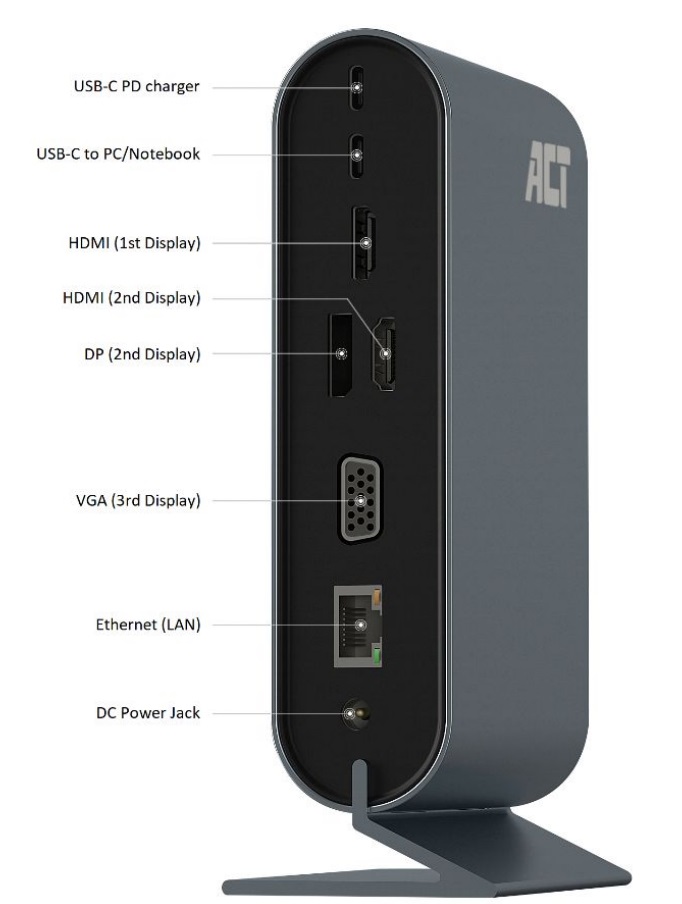

Rear
 1x USB-C female PD Pass-through port (connect your USB-C charger to charge
your notebook)
 1x USB-C female notebook connection (connect this port to the USB-C connector
of your notebook
 2x HDMI 2.0 female port (connect your HDMI monitor(s) to these HDMI ports
 1x DisplayPort female port
 1x VGA female port
 1x Gigabit LAN RJ45 female port
 1x DC power supply


Please Note!!! The 2nd HDMI port is shared with the DisplayPort port so it cannot be
used simultaneously. You will need to choose which port you wish to use: HDMI or
DisplayPort.
