| Specification | Details |
| Material | PC + ABS, black |
| Connector | USB Type-C |
| Requirements | Host must support DisplayPort Alternate Mode video output |
| Compatible Systems | Windows 7 and up, MacOS, ChromeOS computers that support USB-C DP alt mode |
| Power Supply | DC5V / 1A (USB Type-C) |
| Input Resolution | 3840x2160@30Hz / 2560x1600@30Hz / 1920x1200@30Hz / 1920x1080@60Hz 1366x768@60Hz / 1280x800@60Hz / 1280x720@60Hz / 1024x768@60Hz |
| Audio | 44.1KHz/48KHz, 16bit, PCM2.0 |
| LED | 1. Booting: The purple light blinks once, then the blue light stays on for a few seconds 2. Blue LED flashing. Power-On completed, waiting for connection 3. Blue LED static ON: Connection between Base Station and Presenter button established 4. Red LED static ON: Screen casting established |
| Video Latency | ≈ 150 ms |
| Antenna | Receiving Sensitivity: -70dBm |
| Transmission Protocol | IEEE 802.11ac/802.11n |
| Encryption Protocol | WPA2-PSK |
| Frequency Band | 2.4GHz / 5GHz (default) |
| Connection Range | 20 meters (unobstructed) |
| Codec | H.264 + H.265 |
| Max. Power Consumption | ≤ 2.5W |
| Standby Power Consumption | < 1.8W |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -20°C ~ +45°C |
| Operating Humidity | 0 to 90% relative humidity, non-condensing |
| Storage Humidity | 0 to 90% relative humidity, non-condensing |

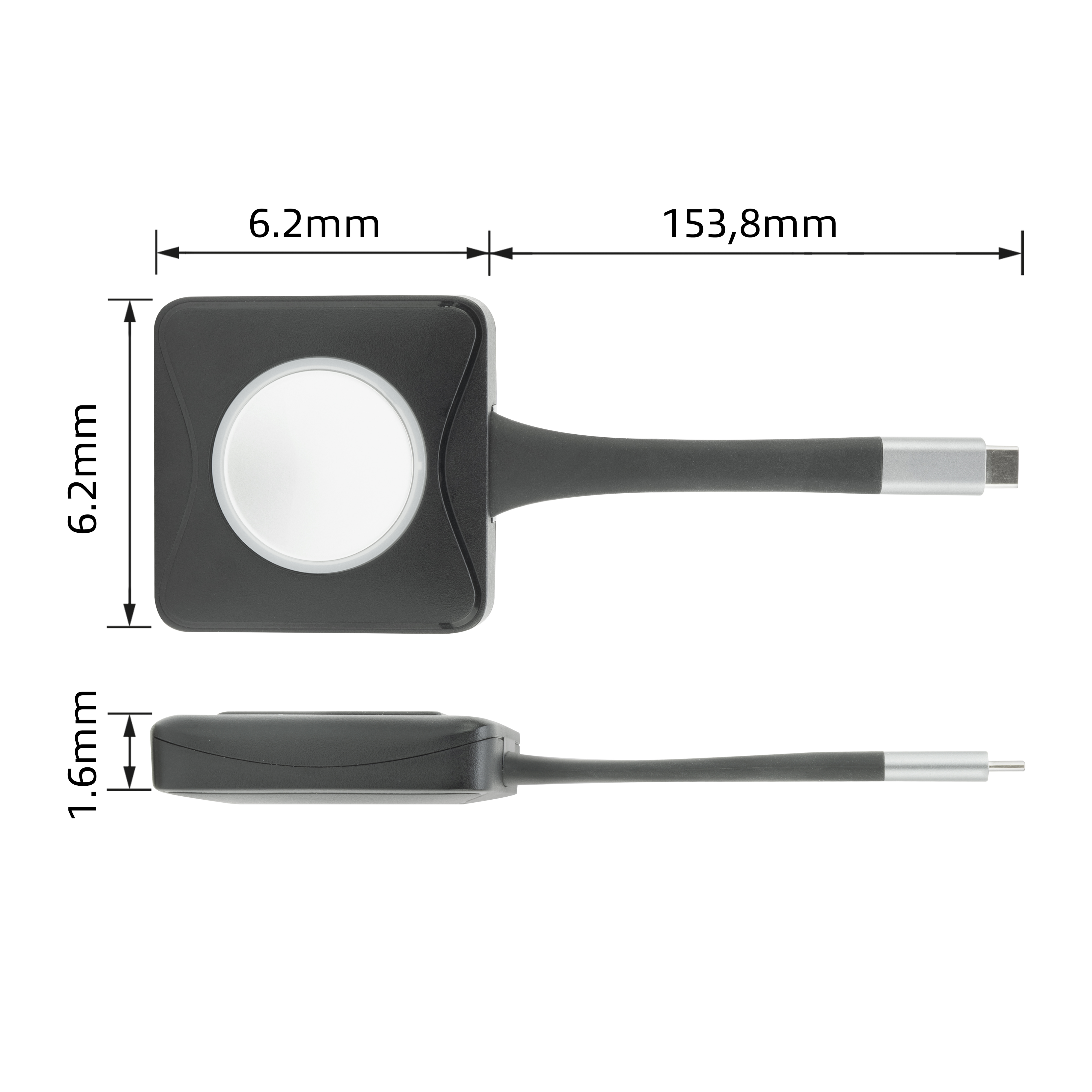

| Dimensions | (WxDxH) 16cm x 1.6cm x 6.2cm |
| Weight | 65 grams |
