AC7960 Wireless Network Bridging

  • Updated

The Aero Base Station can be connected to an existing Wi-Fi network by following these steps:

  1. Prepare the Base Station
    • Make sure the Base Station does not have a LAN cable plugged in.
    • Disable Miracast by navigating to Network Settings → Miracast Settings and deselect the Enable option.
  2. Restart the Base Station
    • Restart the Base Station by going to Maintenance → Restart and pressing the Restart button.
  3. Configure Wi-Fi Settings
    • After the Base Station is rebooted, connect to its Wi-Fi network and log in to the web interface.

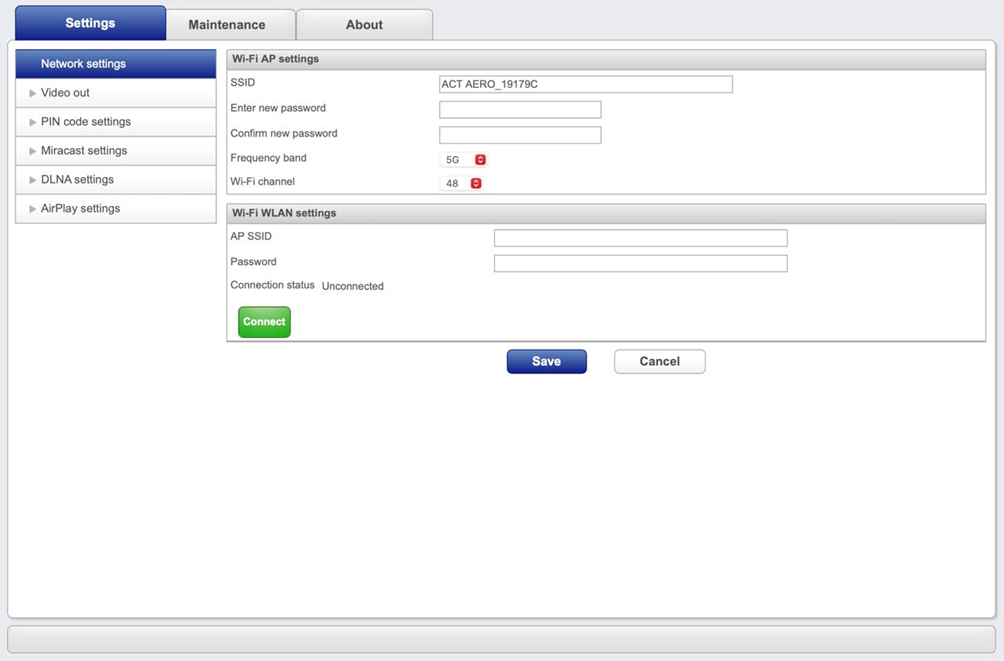

    • Navigate to Settings → Network Settings → Wi-Fi WLAN Settings enter the SSID and password, then click Connect.

4. Restart and connect

  • Restart the Base Station by going to Maintenance → Restart and pressing the Restart button. After the Base Station is restarted, connect your device to the Wi-Fi of the Base Station.

Once configured, the Base Station will connect to the specified Wi-Fi network. Devices connected to the Base Station's Wi-Fi will gain internet access through the Base Station's wireless bridge functionality.
