The AC7815 is an HDMI KVM over single CAT6/6a extension kit. It can extend a 4K HDMI signal over 70m with zero-delay and has capability to extend keyboard and mouse via the USB1.1 ports. EDID copy or pass-through can be set with the dipswitches on the transmitter. Only one side needs to be powered because the AC7815 uses POC (Power Over Cable).
The AC7815 can widely be used in multi-media rooms, conference rooms, schools, control rooms or any other situation where you would like to extend an HDMI 4K60Hz signal, keyboard and mouse.
- Extend a 4K@60Hz HDMI signal, keyboard and mouse with a maximum of 70 meters point to point over a single CAT6/CAT6A cable
- Supports up to 3840x2160@60Hz, EDID support, chroma sampling 4:4:4 12-bit, HDMI 2.0 and HDCP 2.2 compliant USB-A 1.1 ports for connecting a keyboard and mouse; 3.5mm audio out for connecting headphones or speakers; supports HDMI embedded audio
- Additional HDMI output on the transmitter unit for connecting a local display (local loop out)
- Power over Cable (PoC): powered by transmitter or receiver by using a CAT6/CAT6A cable; secure locked power connection

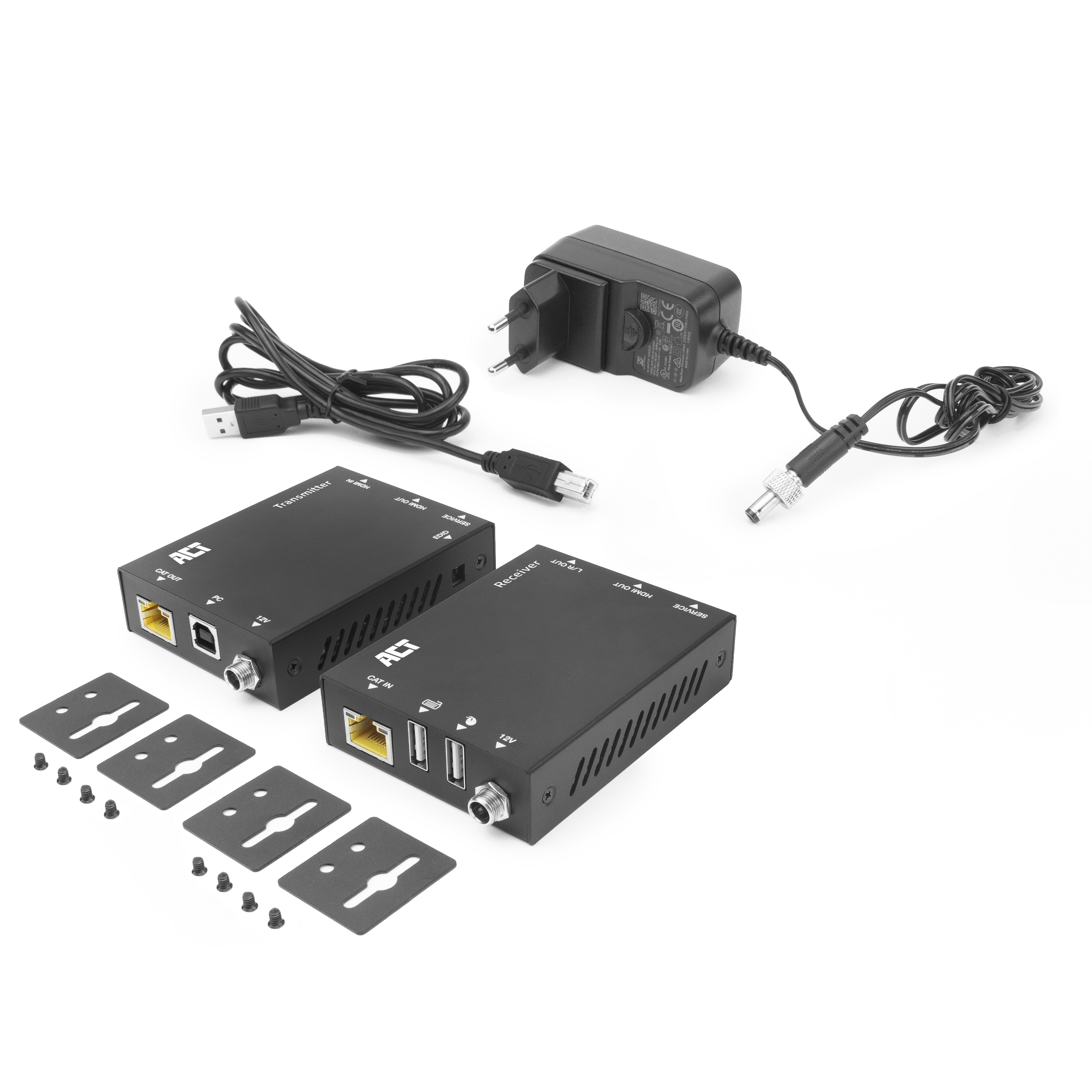

- Mounting brackets, power adapter and USB connection cable included
- HDMI KVM extender set for controlling a computer with high resolution video and audio over a distance up to 70 meters
Connect a CAT6a up to 70 meters between the transmitter and receiver. Only direct connection is supported, you can not use a standard network switch or a router.
The USB ports only accept HID devices.
