The ACT 4K HDMI Switch 5x1 can switch between 5 HDMI sources. The max bandwidth is 18 Gbps and the supported video resolution is up to 4K2K@50/ 60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats.The product has low power consumption. It can be controlled by the Switch button on the top of the AC7841 or via IR remote control.
Input signal selection supports two switching modes;
| Automatic switching: | automatically switch to the HDMI port on which the signal source is connected to. |
| Manual switching: | press the SWITCH button on the top panel of the AC7841 or use the buttons IN1/IN2/IN3/IN4/IN5 on the included IR Remote Control. |
| Technical | |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4k2k@60Hz |
| Color Depth | 8-bit (4K60Hz) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Ports | 5×HDMI INPUT [Type A, 19-pin female] 1×IR IN [3.5mm Stereo Mini-jack] |
| Output Ports | 1×HDMI OUTPUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 87mm (W) × 59.5mm (D) × 19mm (H) |
| Weight | 60g |
| Power Supply | Input: DC 5V/1A |
| Power Consumption | 1.5W |
Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

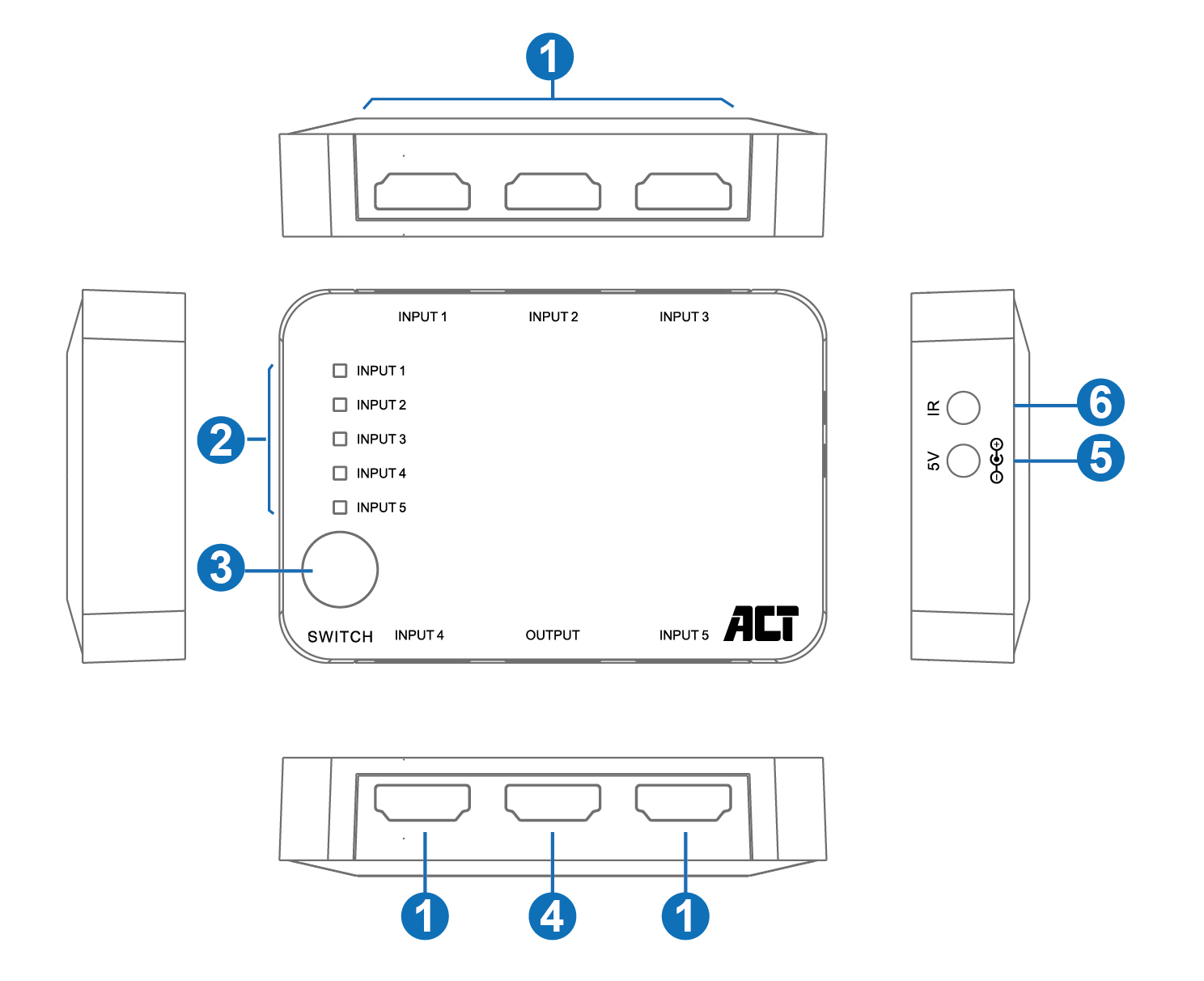

- HDMI input ports (5x)
- HDMI input status led
- Push to switch to go to desired HDMI input
- HDMI output
- Power input 5 Volt
- External IR input
