OBS Studio
OBS Studio (Open Broadcaster Software) is a free and open-source cross-platform livestream software.
ACT cannot provide support for the OBS software, please refer to the OBS website if you have questions.
All information and free download of the OBS software, can be found on their website: www.obsproject.com
In the simple steps below, we show how to add the AC7610 to OBS studio. During the making of this manual, we used OSB Studio software version 30.0.2
Add a capture input (MacOS)
1. Click on the plus icon and select "Video Capture Device"

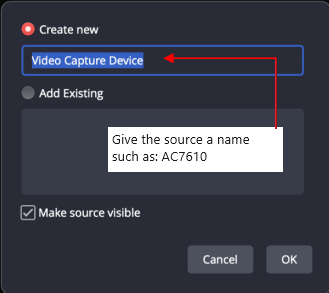

2. Give the source a name e.g. “AC7610”
3. Choose a device (AC7610)
4. Make sure to set the right settings for the "Video Capture Device":
5. Uncheck the option “Use Preset”.
6. Match the resolution and frame rate with the input source.
7. Make sure to select the right settings for:
- Input Format: YUY2 – 422YpCbCr8_yuvs
- Color Space: Rec. 709
- Video range: Full
Click on OK to add the AC7610 to the OBS software.
