OBS Studio
OBS Studio (Open Broadcaster Software) is a free and open-source cross-platform livestream software.
ACT cannot provide support for the OBS-software, please refer to the OBS-website if you have any questions.
All information and free download of the OBS-software, can be found on their website:
In the simple steps below, we show how to add the AC7610 to OBS studio.
During the making of this manual, we used OBS Studio software version 30.0.2
Add capture input (Windows)
1. Click on the plus sign to add a new source
2. Add a Video Capture Device

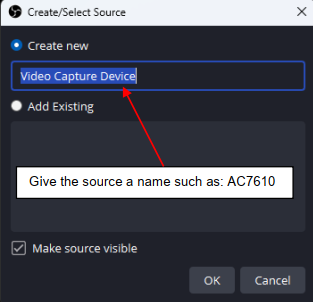

3. Give the source a name e.g. “AC7610”

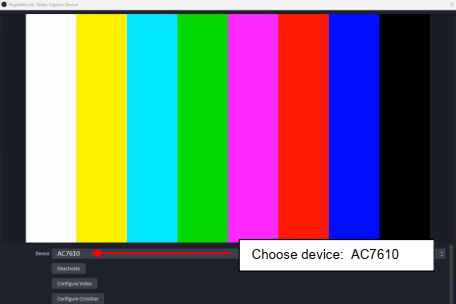

4. Choose a device (AC7610)

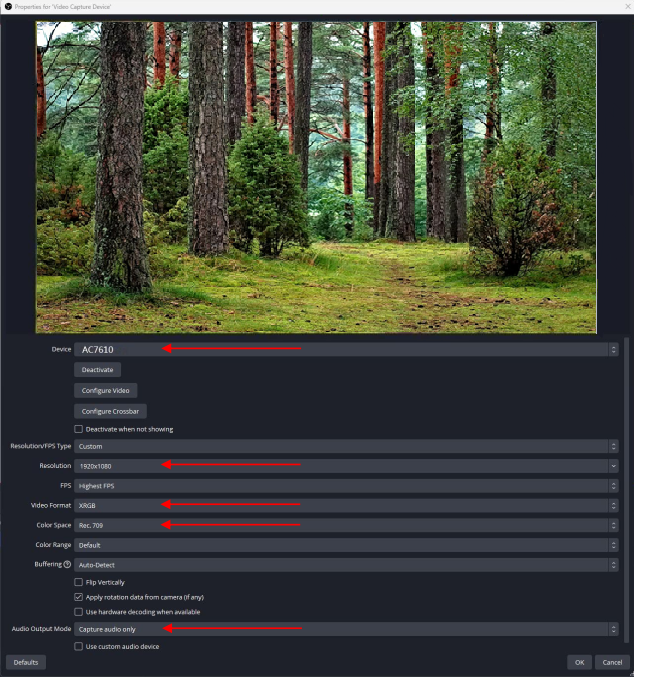

5. Set the right resolution. In our example we used 1920x1080 at 60fps.
Make sure to select the right settings for:
- Video Format: XRGB
- Color Space: Rec. 709
- Audio Output Mode: Capture Audio only
Click on OK to add the AC7610 to the OBS-software.
