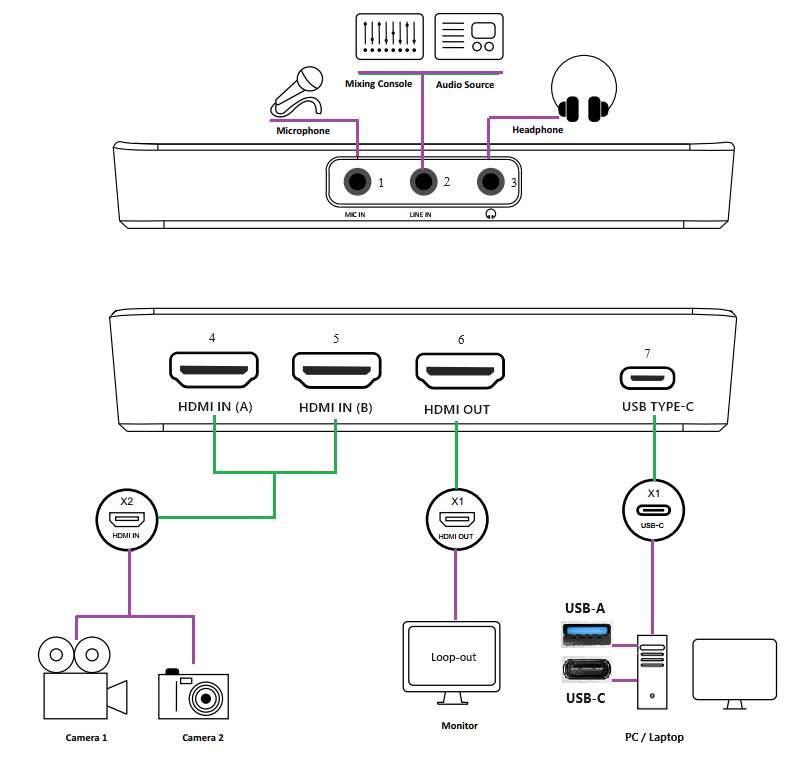

AC7610 connection diagram

1. MIC IN (connect your microphone)
2. LINE IN (connect your Audio Source device / Mixing Console)
3. LINE OUT (connect your Headphone / Speakers)
4. HDMI IN (A) (connect a HDMI Video Source device)
5. HDMI IN (B) (connect a 2^nd HDMI Video Source device)
6. HDMI OUT (connect a HDMI monitor, HDMI OUT can also be seen as PGM output)
7. USB-C (connect your PC / Laptop with USB-A or USB-C port, using the USB-C cable with included USB-C to USB-A adapter)

Product specificaties

• USB-C: USB 3.0 / 5 Gbit/s transfer bandwidth, USB 2.0 backwards compatible

Capture Video Format:

• YUY2 16bit: Support 1080P/60Hz resolution capture
• RGB 24bit: Support 1080P/60Hz resolution capture (Uncompressed); High Color

-------------------------------------------------------------------------------------------------------------------

• HDMI IN A/B
• Input format: HDMI2.0
• Supported resolutions:

720P, 1080P, 4K@30Hz, 4K@60Hz / 640x480; 800x600; 1024x768; 1600x1200; 1280x1024; 1680x1050;

1920x1200; 1600x900; 1440x900; 1366x768; 1360x768; 1280x960; 1152x864; 1280x800; 1920x1080 and 3840x2160

-------------------------------------------------------------------------------------------------------------------

• HDMI OUT: 1080P@60Hz
