OBS Studio
Setting up the AC7600 capture card in OBS Studio is explained below. OBS Studio (Open Broadcaster Software) is a free and open-source cross-platform live streaming software and is often used by streamers to stream PS5 games to popular streaming platforms such as Twitch, YouTube Gaming, or Facebook Gaming.
ACT cannot provide support for the OBS software, please refer to the OBS website if you have questions.
All information and free download of the OBS software, can be found on their website: www.obsproject.com
In the simple steps below, we show how to add the AC7600 to OBS studio. During the making of this manual, we used OSB Studio software version 30.0.2
Add a capture input (MacOS)

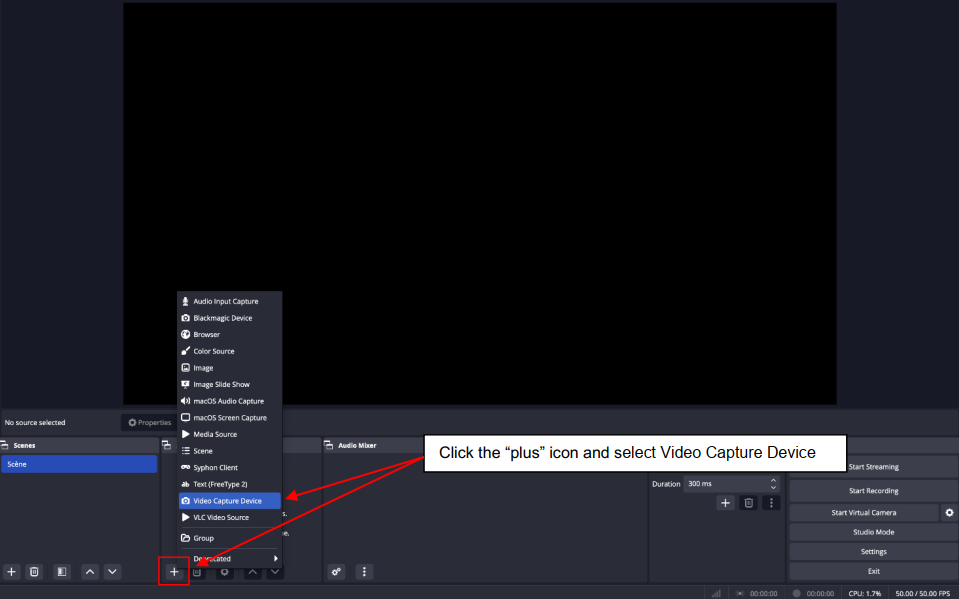

1. Click on the plus sign to add a new source
2. Click on "Video Capture Device" to add a source device

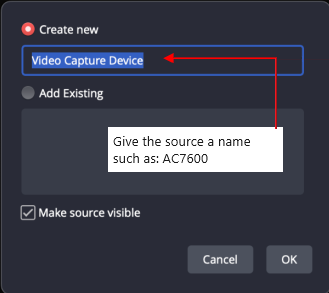

3. Give the source a name e.g. “AC7600”
4. Choose a device (AC7600)

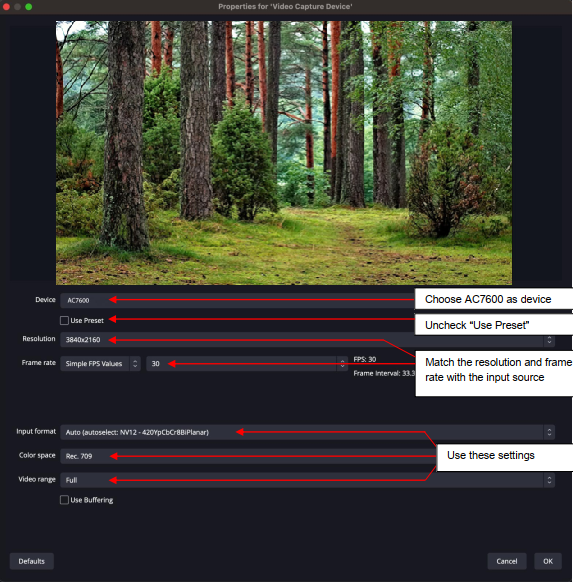

5. Make sure to set the right settings for the "Video Capture Device":
6. Uncheck the option “Use Preset”.
7. Match the resolution and frame rate with the input source.
8. Make sure to select the right settings for:
- Input Format: Auto (autoselect: NV12 – 420YpCbCr8BiPlanar)
- Color Space: Rec. 709
- Video range: Full
Click on OK to add the AC7600 to the OBS software.
