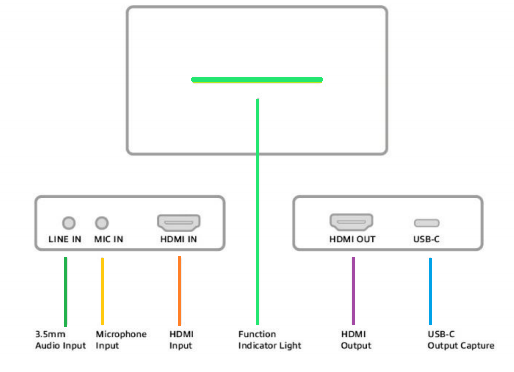

Device connections
1. Connect external audio to the LINE IN.
2. Connect an external microphone to the MIC IN.
3. Connect your computer or laptop to the USB-C port.
4. Connect an external HDMI monitor to HDMI OUT, for monitoring the loop-out signal of the device
which is connected to HDMI IN.
5. Connect a HDMI device on the HDMI IN (AC7600), max. supported resolution is 4K @ 60Hz.

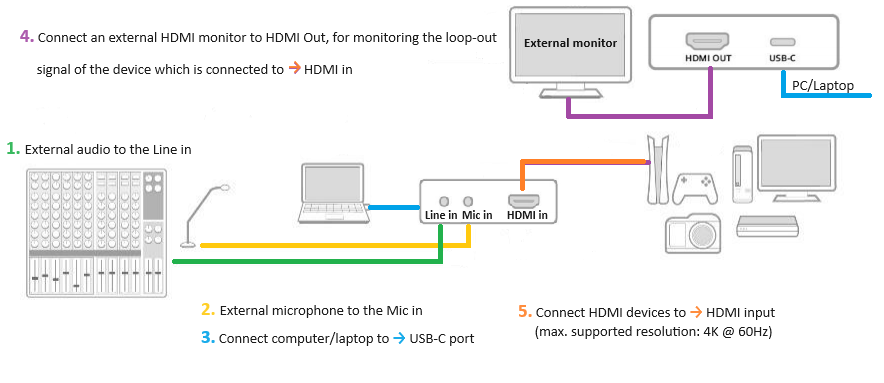

Connection diagram
