AC8302 How to use the lever (Part "L"), in order to tighten the arm onto the base?

  • Updated

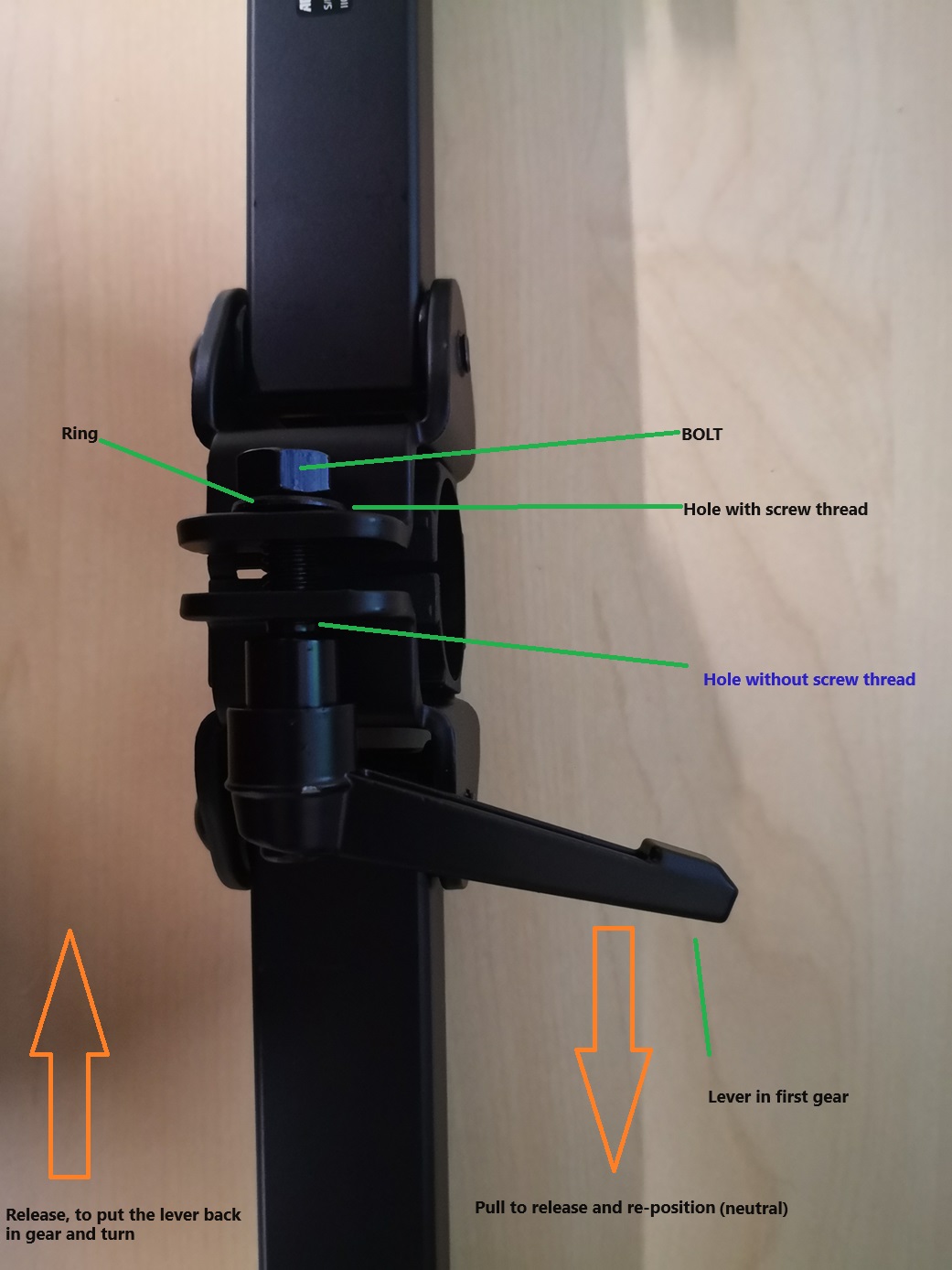

How to use the lever (Part "L"):

Pull the lever to release (neutral position); position the lever, to prepare for the next half turn.
With releasing the lever and turning the lever; you actually put the lever back in gear, in order to tighten the bolt.

Pull/release/turn

On the other end of the lever, you should place a nut.
