Before installing make sure to visit our website:
https://www.act-connectivity.com/en-us/usb-c-docking-station-4k-displaylink-Drivers-AC7150
and download the most recent driver version.

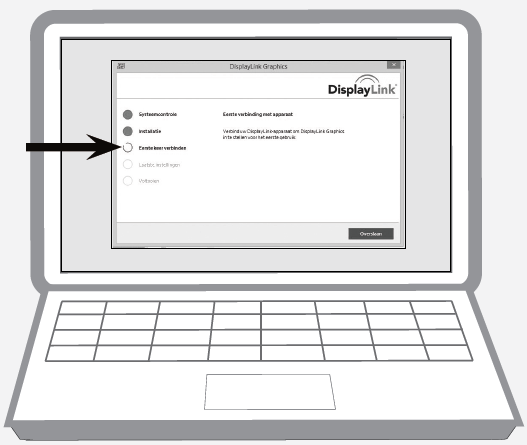

Unzip the downloaded file and install the driver on your windows PC/laptop.

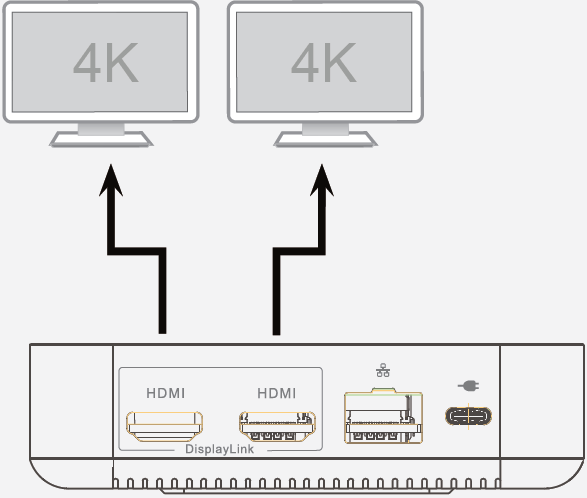

Connect the monitors to the docking station.
Important information if you want to use the USB-C PD charging function of the docking station.
- USB-C PD charging function is only available for laptops supporting USB-C PD Charging (or Thunderbolt 3 or 4).
- An additional USB-C PD charger is needed to connect the docking station (not included).
- Make sure the USB-C PD charger is able to provide sufficient power, to power the laptop accordingly and keep in mind to have approx. an additional 5W extra power left, to supply power for additional USB devices. For example, you have a laptop that needs 45W you will need to connect a USB-C PD charger of at least 50W to the docking station to Power your laptop and additional USB devices.
- When using the supplied USB-C to USB-A adapter you will not be able to charge your laptop through the docking station, at that point you will need to connect your laptop PD charger, directly onto the laptop.

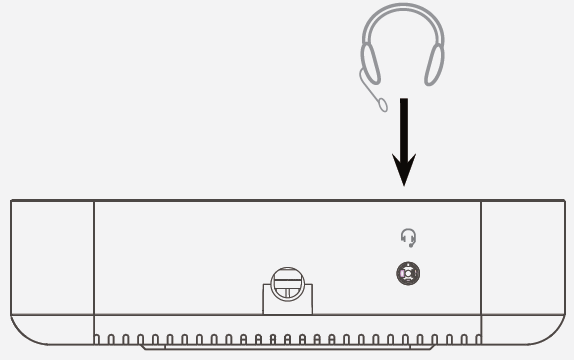

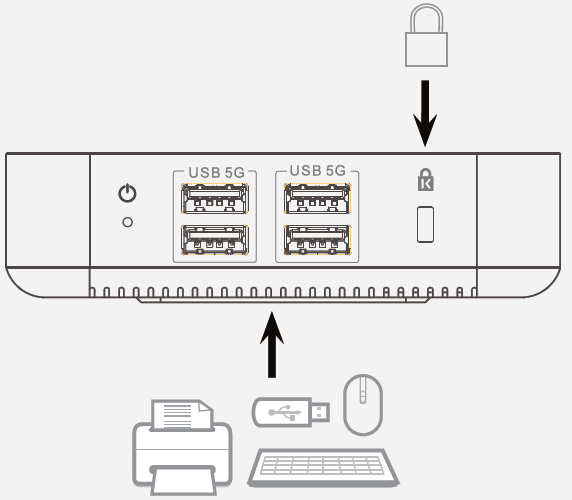

Other peripherals can be connected to the USB-A, Ethernet and 3.5mm Audio jack

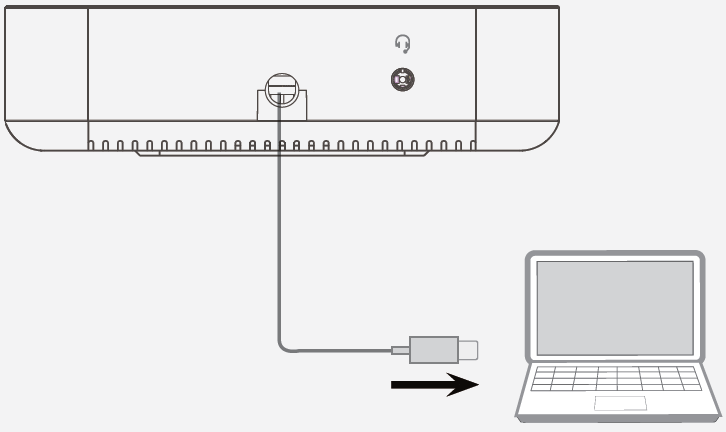

Connect the docking station to your Windows PC/Laptop.
